Application:
The bag is widely used in vacuum packing of static sensitive electronic components, precise equipment,chemical raw material and medical intermediate etc. The bag has good moisture barrier property to protect inner items. Various bag types can be customized such as open-end bag, zip-lock bag, gusset bag and so on.

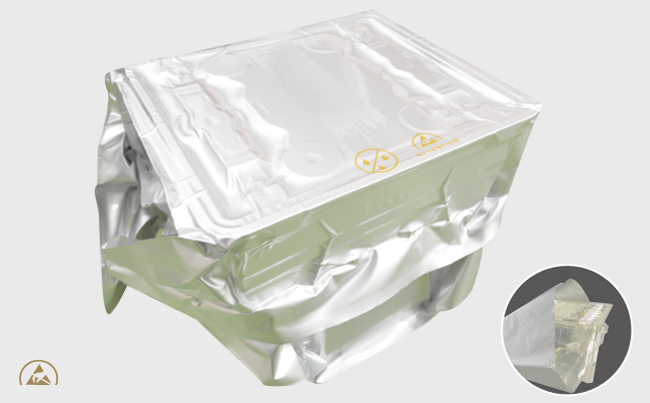

Packing way:
Application and Features:
The bag is widely used in vacuum packing of static sensitive electronic components, precise equipment,chemical raw material and medical intermediate etc.
The bag has good moisture barrier property to protect inner items.

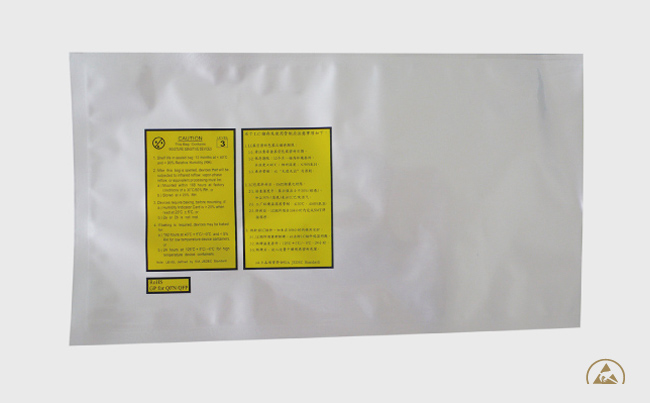

Various bag types can be customized such as open-end bag, zip-lock bag, gusset bag and so on.

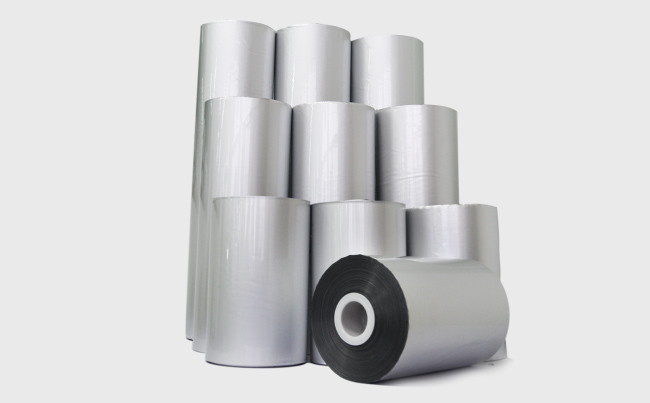

ESD Moisture Barrier Film
Service and quality control
All kinds of printing services are available;
Various thickness is available and special material structure can be custo-mized;
The third-party testing reports are offered such as ROHS and Halogen etc.
The material meets the environment requirements of EU and North America in package.

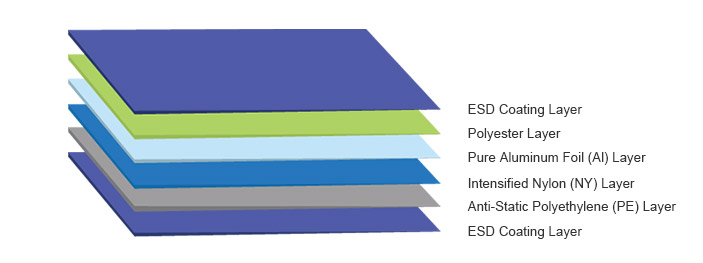

Material Structure:
Specification
| Material Composition | PET/AL/NY/PE | |
| Inner Surface Resistivity | ANSI ESD-STM-11.11 | < 1011 ohm |
| Outer Surface Resistivity | ANSI ESD-STM-11.11 | < 1011 ohm |
| Decay Time | IEC61340-5-1(±1000V~±100V) | < 2s |
| Friction Voltage | < 100V | |
| WVTR | ASTM F1249 | < 0.0003g/100in2/24hs |
| OTR | ASTM D3985 | < 0.01cc/100in2/24hs |
| Heat-Seal Temperature | 160℃±10℃ | |
| Heat-Seal Pressure | 70Pa | |
| Heat-Seal Time | ≤1.5S | |
