Application:
The bag is widely used in packing of all precise components and electronic kits which are sensitive to static; The bag is easy to open, which increases customer’s packing efficiency; Translucent color is convenient to distinguish inside products; Various bags can be customized such as flat-open bag, zip-lock bag, gusset bag and so on.
Packing way:
Application and Features:

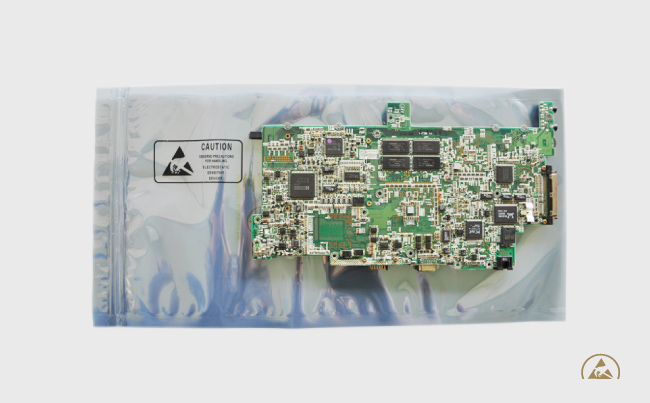

The bag is widely used in packing of all precise components and electronic kits which are sensitive to static;
The bag is easy to open, which increases customer’s packing efficiency;
Translucent color is convenient to distinguish inside products;

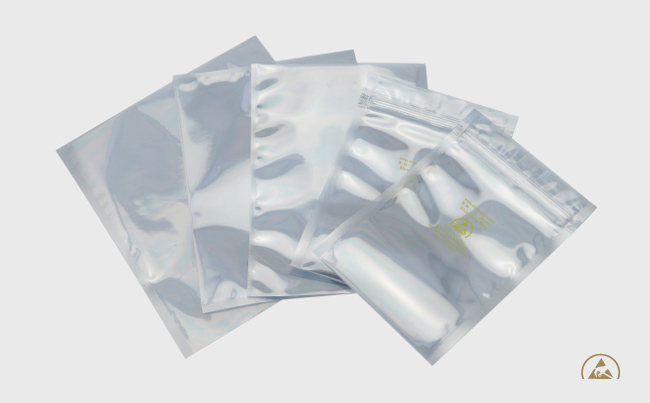

Various bags can be customized such as flat-open bag, zip-lock bag, gusset bag and so on.
Service and quality control
Printing service is available such as product introduction, company logo, and ESD sign etc. The third-party testing reports are offered such as ROHS 2.0 and Halogen etc.
The material meets the environment requirements of EU and North America in package.

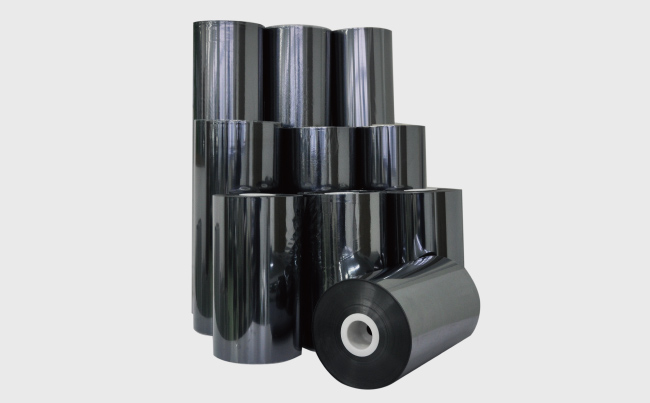

ESD Shielding Film

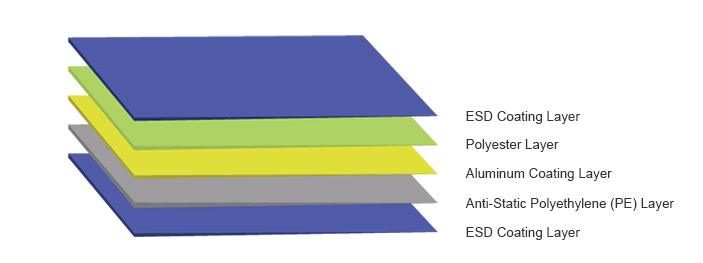

Material Structure:
Specification
| Material Composition | PET-AL/PE or PET-AL/CPP | |
| Inner Surface Resistivity | ANSI ESD-STM-11.11 | < 1011 ohm |
| Outer Surface Resistivity | ANSI ESD-STM-11.11 | < 1011 ohm |
| Decay Time | IEC61340-5-1 (±1000V~±100V) | < 2s |
| Friction Voltage | < 100V | |
| Light Transmission Rate | ASTM D-1003 | 40%±5% |
| Heat-Seal Temperature | 155℃±10℃ | |
| Heat-Seal Pressure | 50Pa | |
| Heat-Seal Time | ≤1S | |
